Stable QualityReasonable PriceQuick DeliveryMain Features
Single speed
Lifting capacity: 0.5t to 10t (customizable)
Max. lifting height: 30m

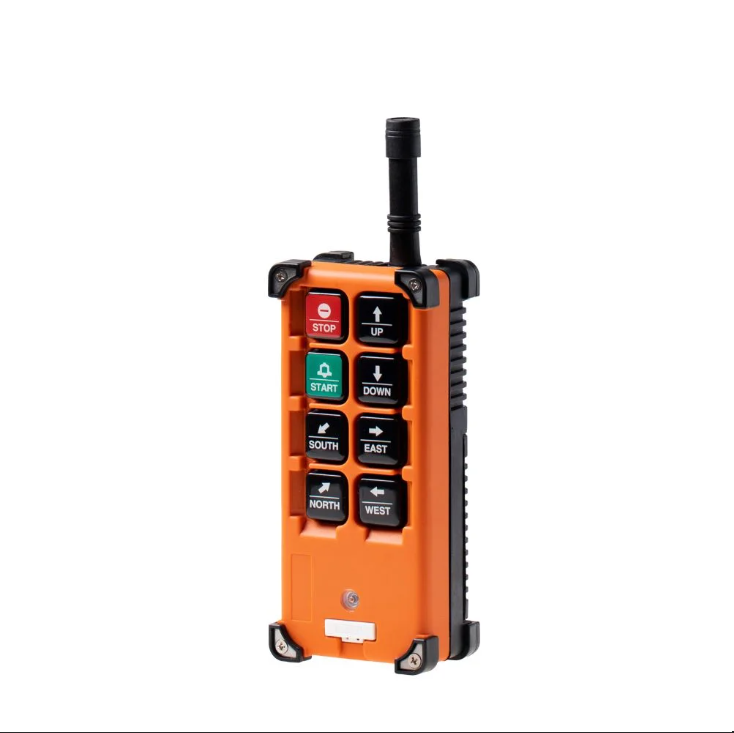

Control: Pendant or remote
Motor Specifications

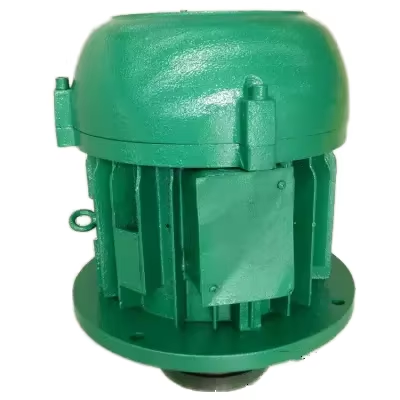

Asynchronous conical rotor motor with built-in brake
Smooth starting & reliable braking
Safe operation & easy maintenance
Insulation: Class B or F | Protection: IP44 / IP54
Control: Pendant or remote
Specification

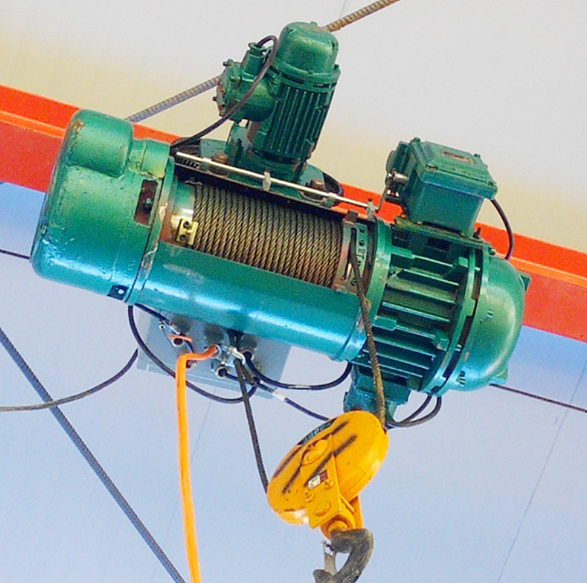

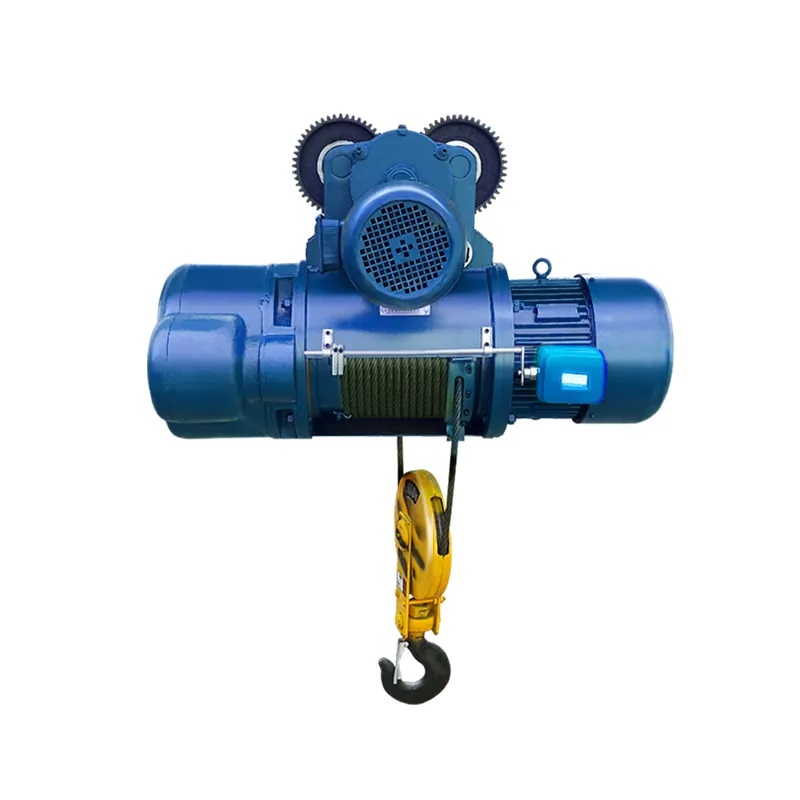

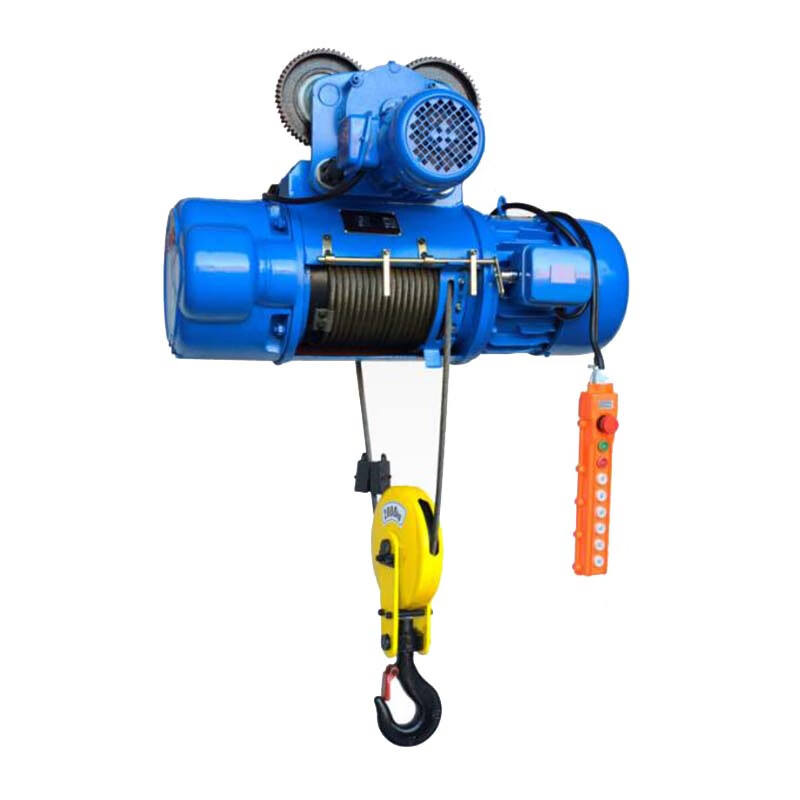

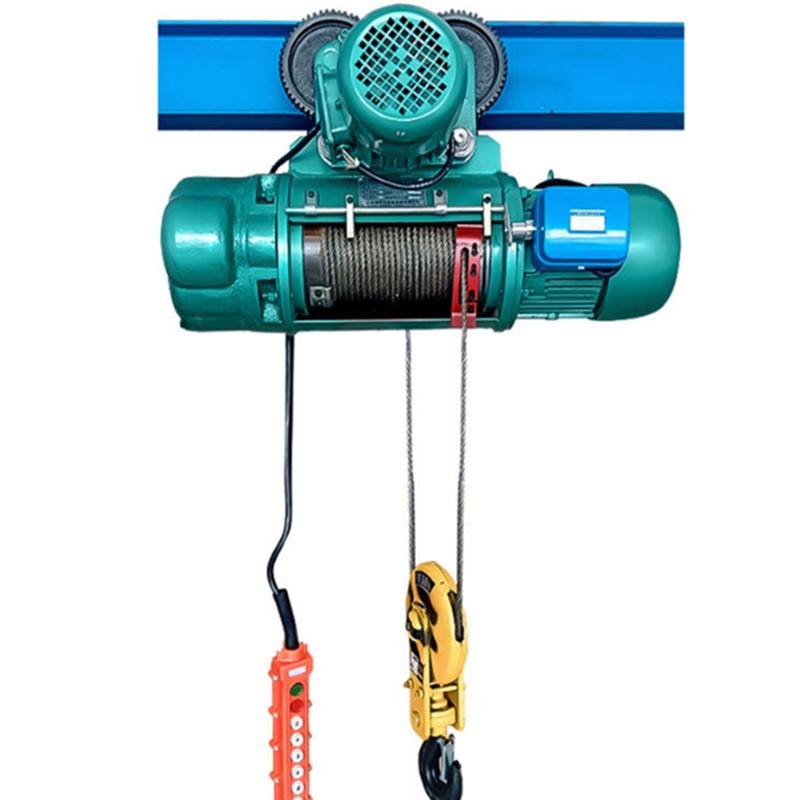

Electric wire rope hoist | |||||
Capacity (t) | 0.25 | 3 | 5 | 16 | |
Hoisting speed(m/min) | 8(0.8/8) | 3.5 | |||
Travel speed (m/min) | 20 | 20/30 | 18 | ||
Track | 10-20b | 20a-32c | 20a-50b | 32b-63c | |
Min curvature radius(m) | 2/2.5/3/4 | 2.5/3/4/4.5/6 | 3.5/4/6/8/11 | ||
Hoisting motor | power(kw) | 0.4 | 3 | 7.5 | 13 |
Roatation speed(r/min) | 1380 | 1400 | |||
Current(A) | 1.25 | 11 | 18 | 30 | |

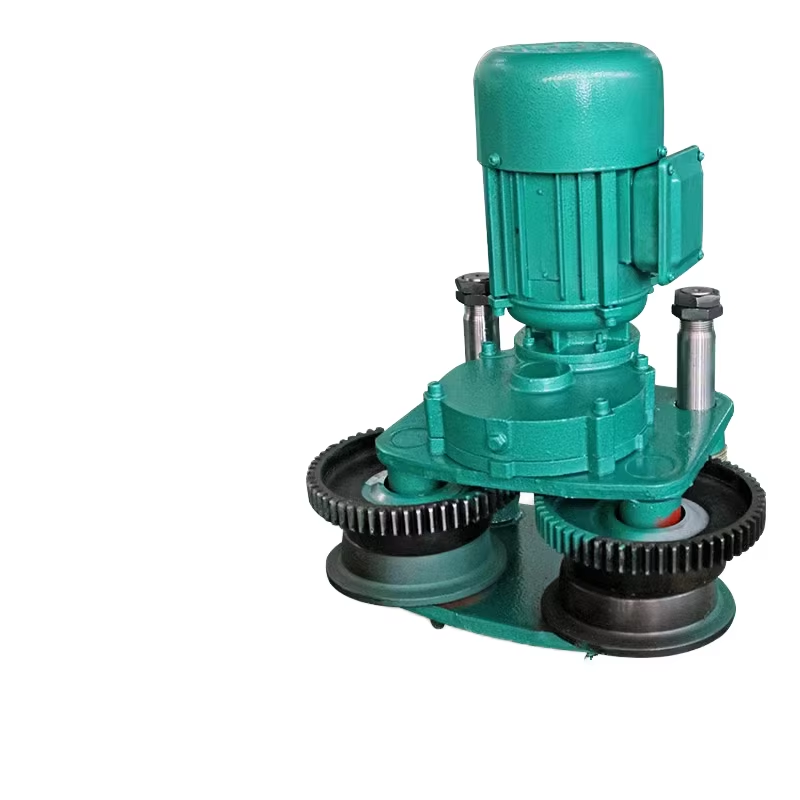

Travel motor | power(kw) | 0.06 | 0.4 | 0.8 | 0.8*2 |
Roatation speed(r/min) | 1400 | 1380 | |||
Current(A) | 0.3 | 1.25 | 2.4 | 2.4*2 | |
Working system | Intermediate FC=25% | ||||
Power source | Three-phase AC380V 50Hz | ||||
Factory direct sales, guaranteed quality, products sell well all over the country, and have received good feedback from customers multiple times
The company is equipped with multiple R&D and production talents, with decades of experience in R&D and production
The company has been based in the industry for many years, with rich industry experience and high recognition from the industry
Targeted satisfaction of customer needs, providing tailored solutions for customers
