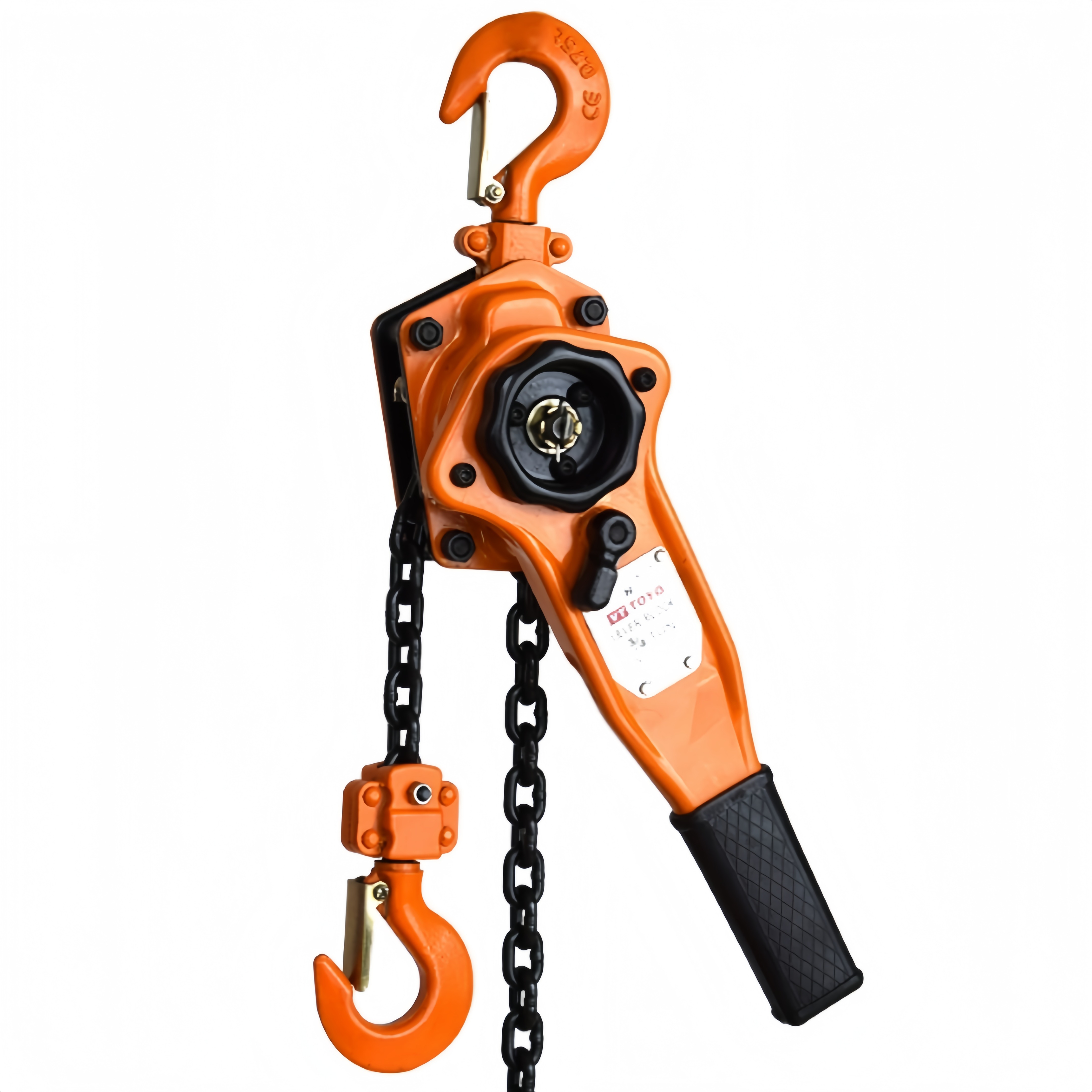

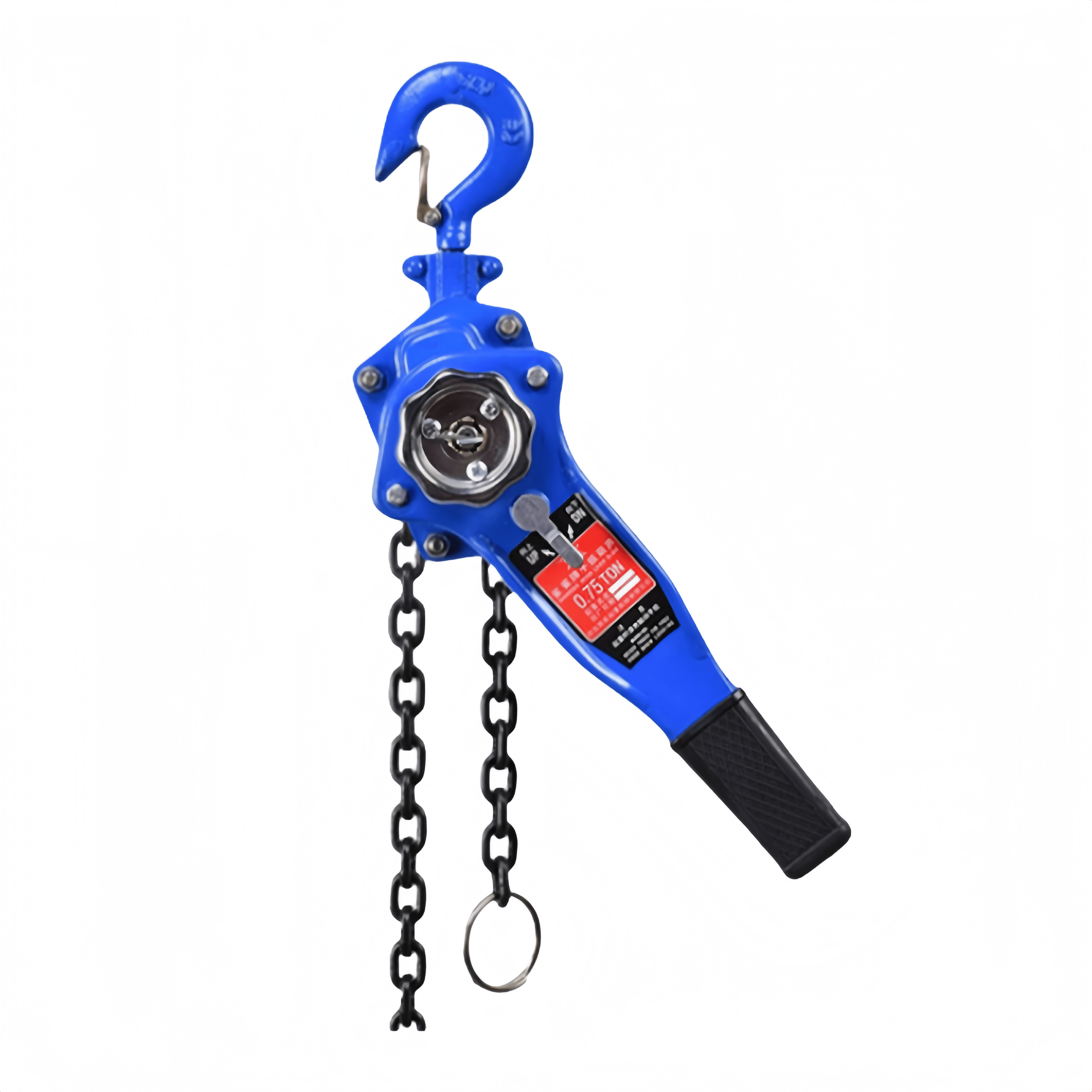

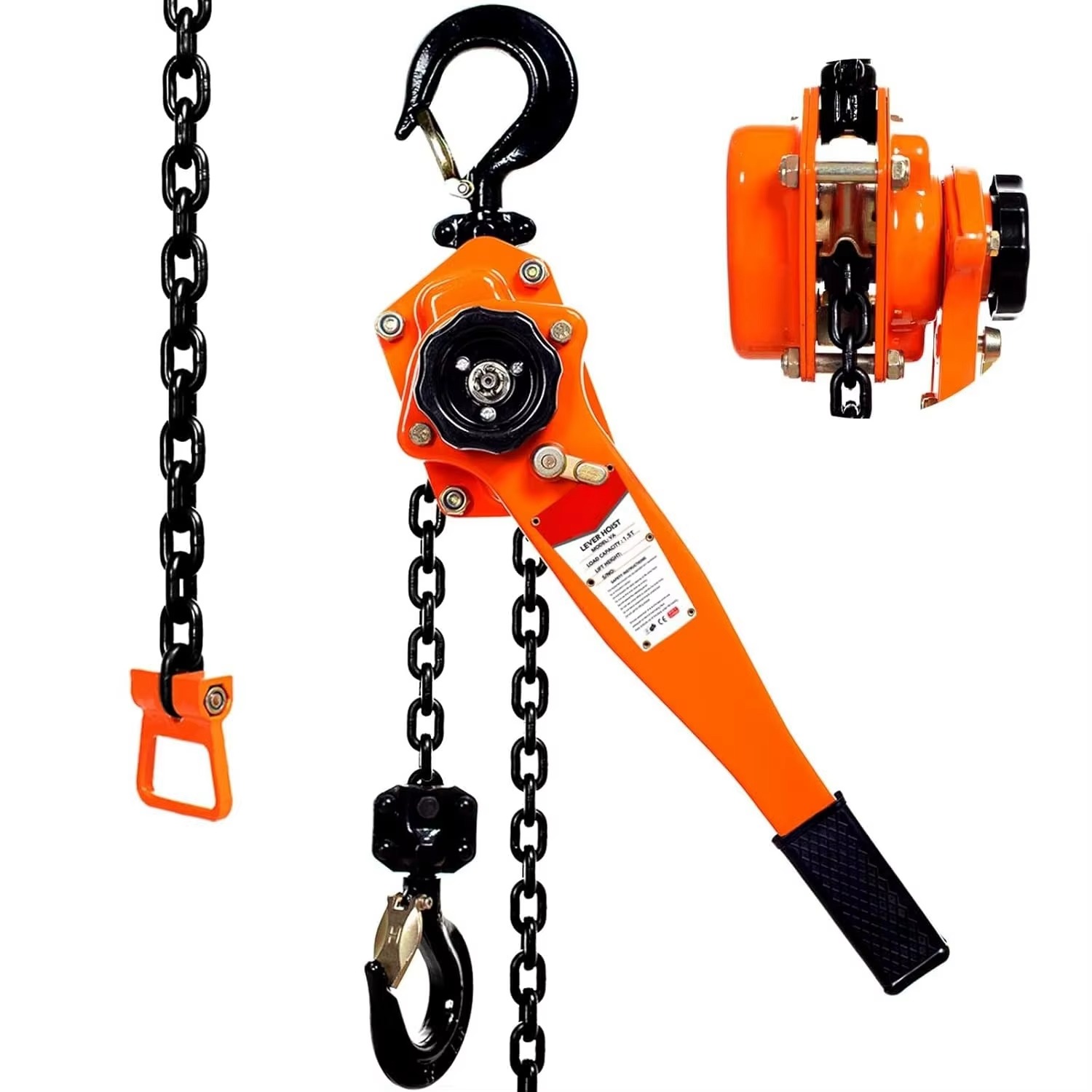

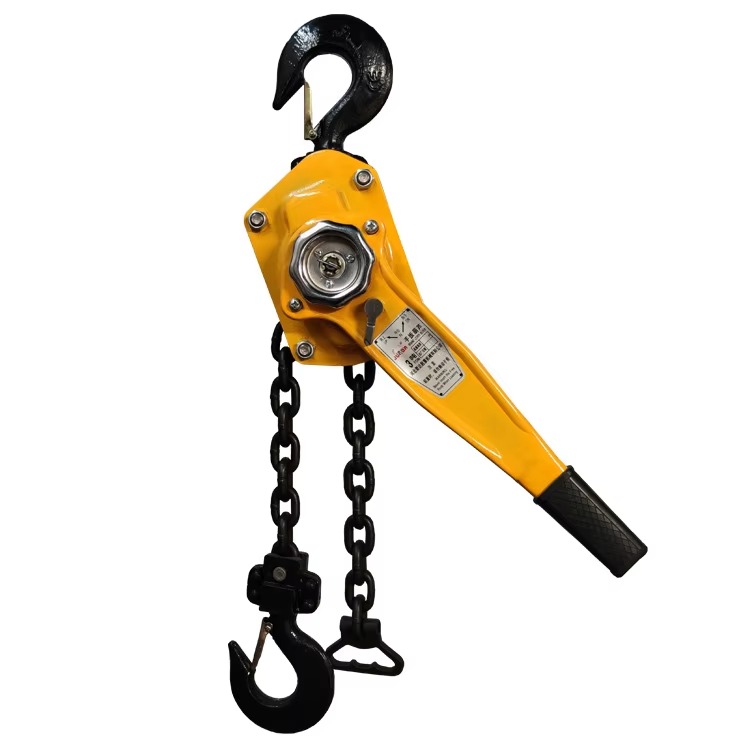

9ton Mini Crane Portable Lifting Machine Manual Lever Hoist Hand Lever Block

Product Description

Engineered with robust construction from high-strength alloy steel plate, this hoist guarantees exceptional safety, reliability, and durability. Its critical safety features include a dual-pawl braking mechanism and a G80 high-strength load chain, ensuring a high safety factor and extended service life. Operation is characterized by smooth rotation, high efficiency, and minimal manual effort. The hoist carries both CE and GS certifications and finds widespread application in nuclear power, thermal power, and transmission & distribution sectors. Overload protection is available as an optional feature.

Stable Quality
Reasonable Price
Quick Delivery

Online Consultation PDF Download

Added Successfully

Continue To Visit Inquiry Now

Product Description

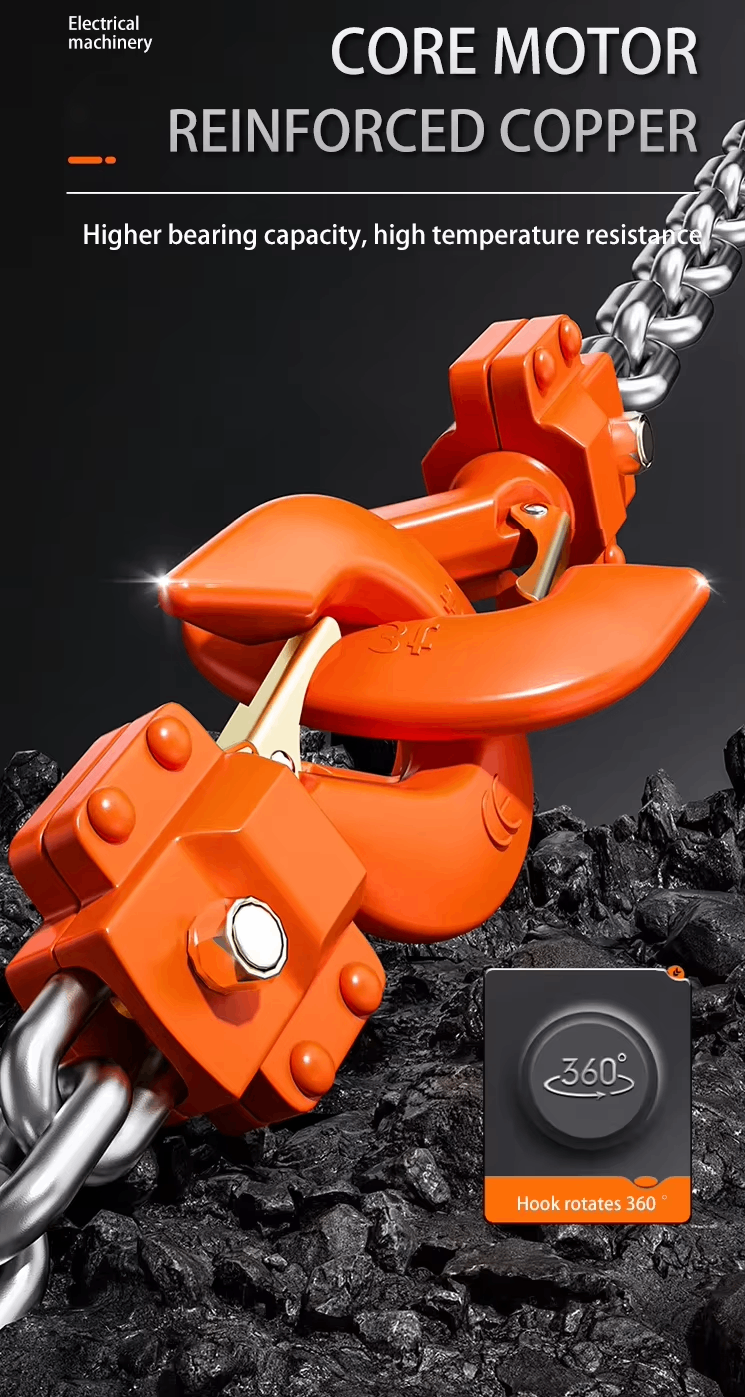

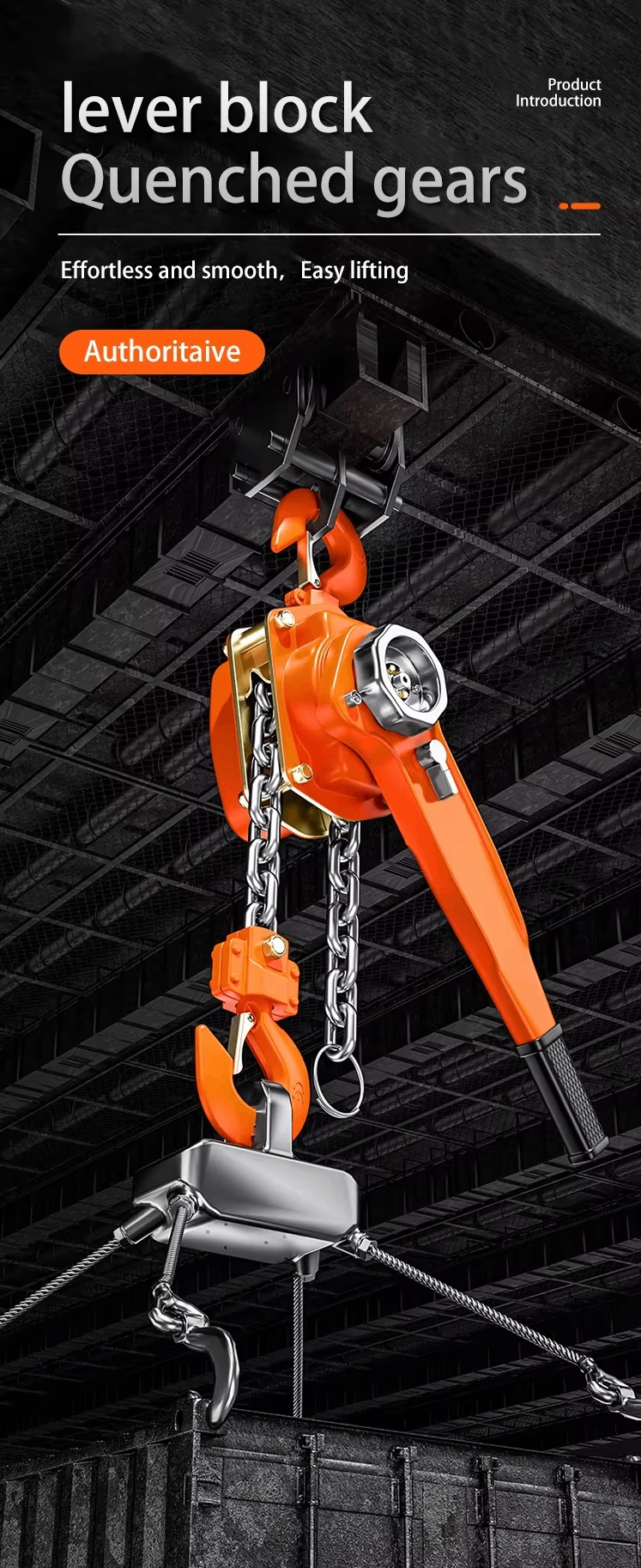

Crafted from high-strength alloy structural steel plate, this lever hoist ensures exceptional safety, reliability, and durability. It is equipped with a dual-pawl braking mechanism and utilizes G80 high-strength load chains. The hoist features a precision-forged alloy steel lifting hook and holds both CE and GS certifications. An optional overload protection function is available.

FEATURES
● Robust construction using high-strength alloy structural steel plate for superior safety and long-term durability.

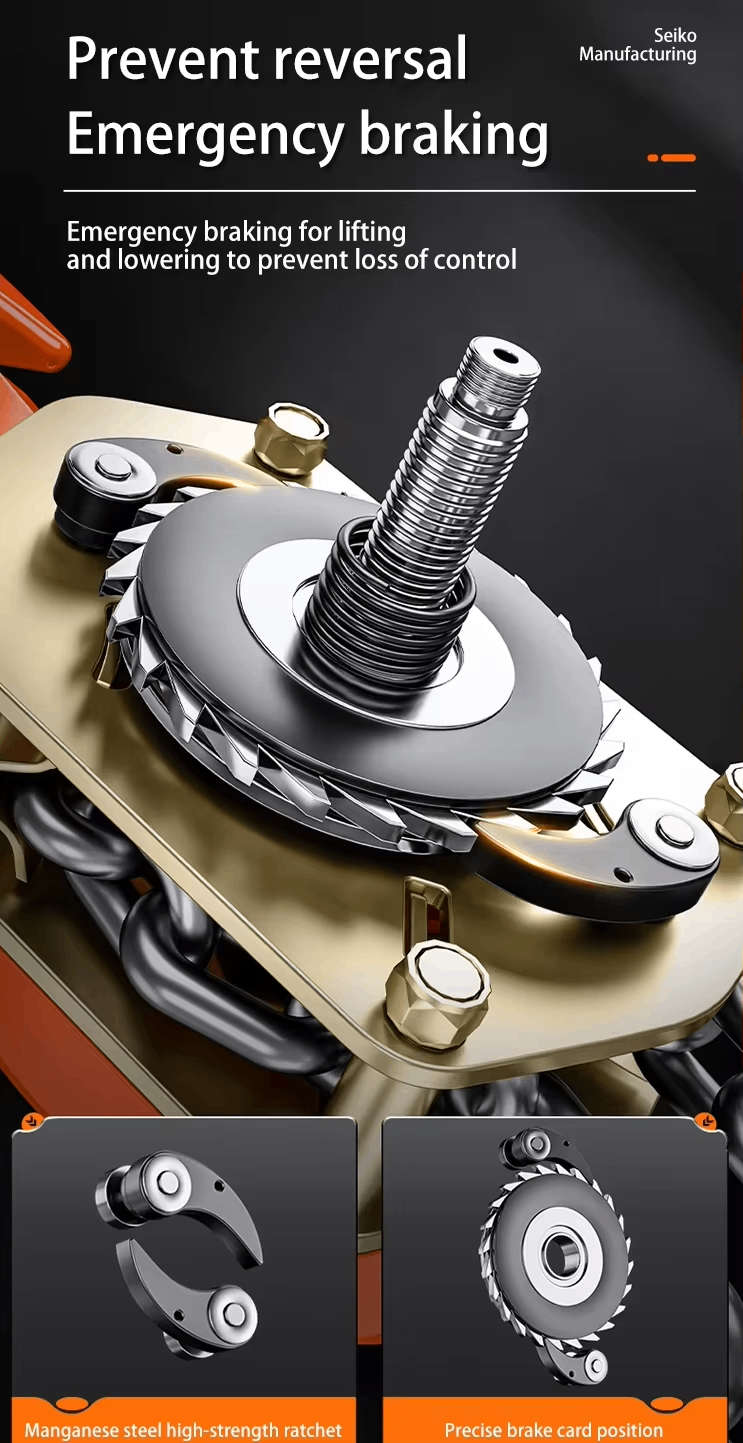

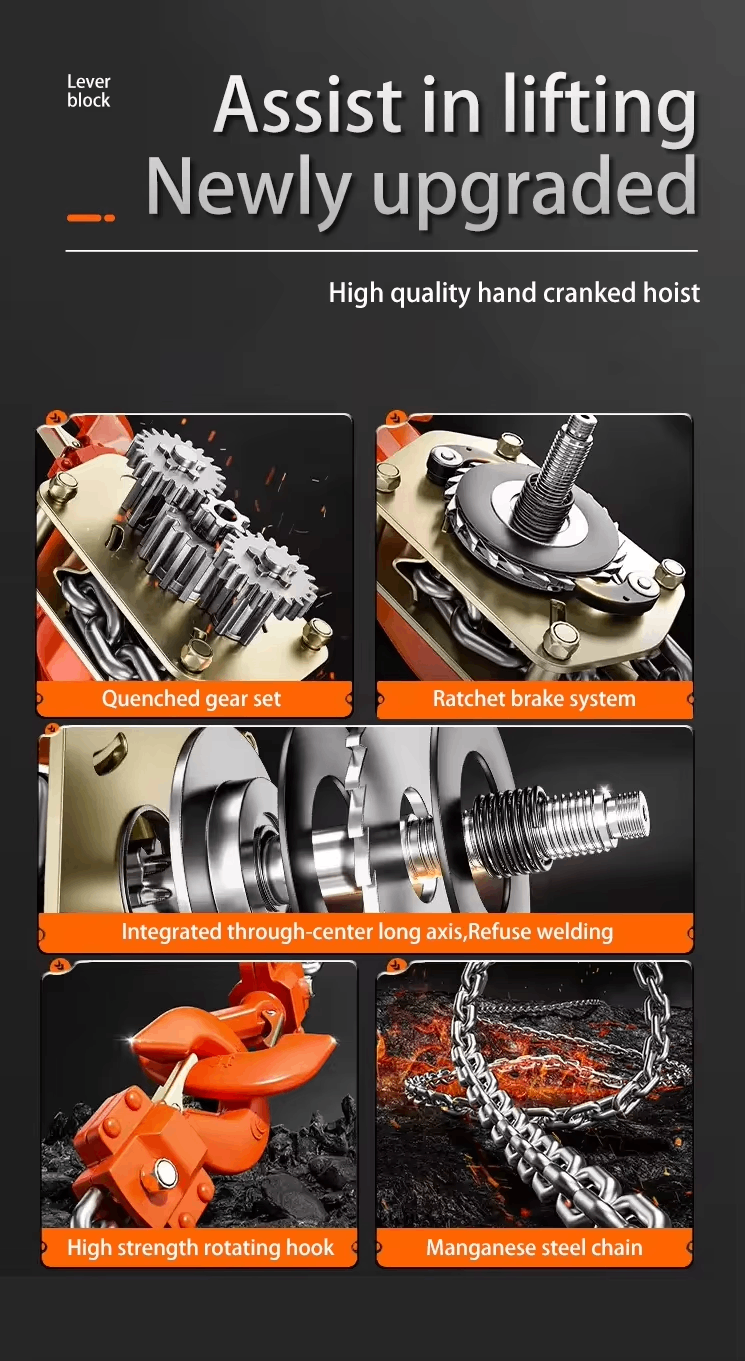

● Dual-pawl braking system for secure load control.

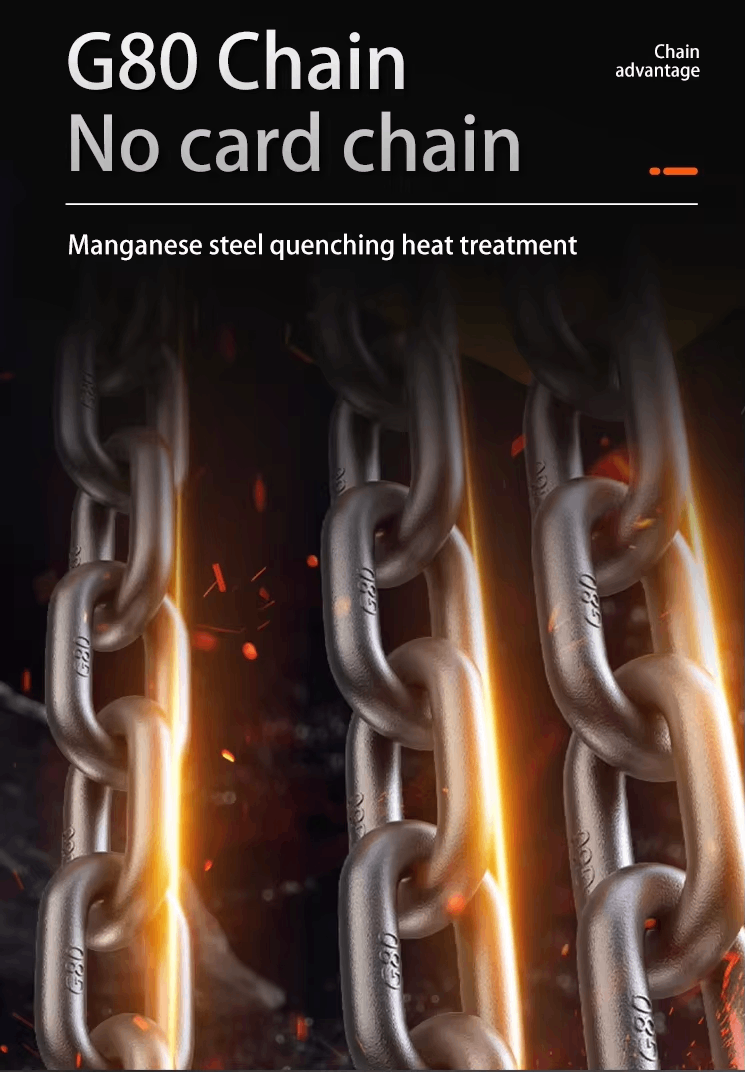

● G80 high-strength load chain ensures a high safety factor and extended service life.

● Smooth rotation, high operational efficiency, and reduced manual effort.

Certified to CE and GS standards.
● Suitable for a wide range of applications including nuclear power, thermal power, and power transmission & distribution.

● Optional overload protection for enhanced operational safety.

APPLICATION INDUSTRIES

The LEVER HOIST is extensively employed in critical sectors such as nuclear power generation, thermal power plants, and electrical transmission and distribution systems. This manual lever chain hoist is designed for lifting and handling heavy loads in various operational environments within these industries.

Model		A-0.75	A-1.5	A-3	A-6	A-9
Load Capacity	t	0.75	1.5	3	6	9
Standard Length	m	1.5	1.5	1.5	1.5	1.5
Operational Test Load	kN	11.2	22.5	45	75	135
Force Required to Lift Rated Load	N	140	220	320	340	360
Number of Load Chain Strands		1	1	1	2	3
Load Chain Size	mm	6×18	8×24	10×30	10×30	10×30
Dimensions (MM)	A	147	170	190	190	190
	B	86	96	103	103	103
	C	96	110	145	220	260
	D	37	38	47	68	71
	H	345	405	490	650	760
	L	285	415	415	415	415
	K	23	33	36	46.2	51
Net Weight	kg	6.25	10.8	18.7	28.7	41.1
Packaging Dimensions	cm	37.5X16X18	52X17X22	55X18.5X22.5	57X21X23	60X42X28
Additional Weight per Meter of Extension	kg	0.8	1.4	2.2	4.4	6.6
