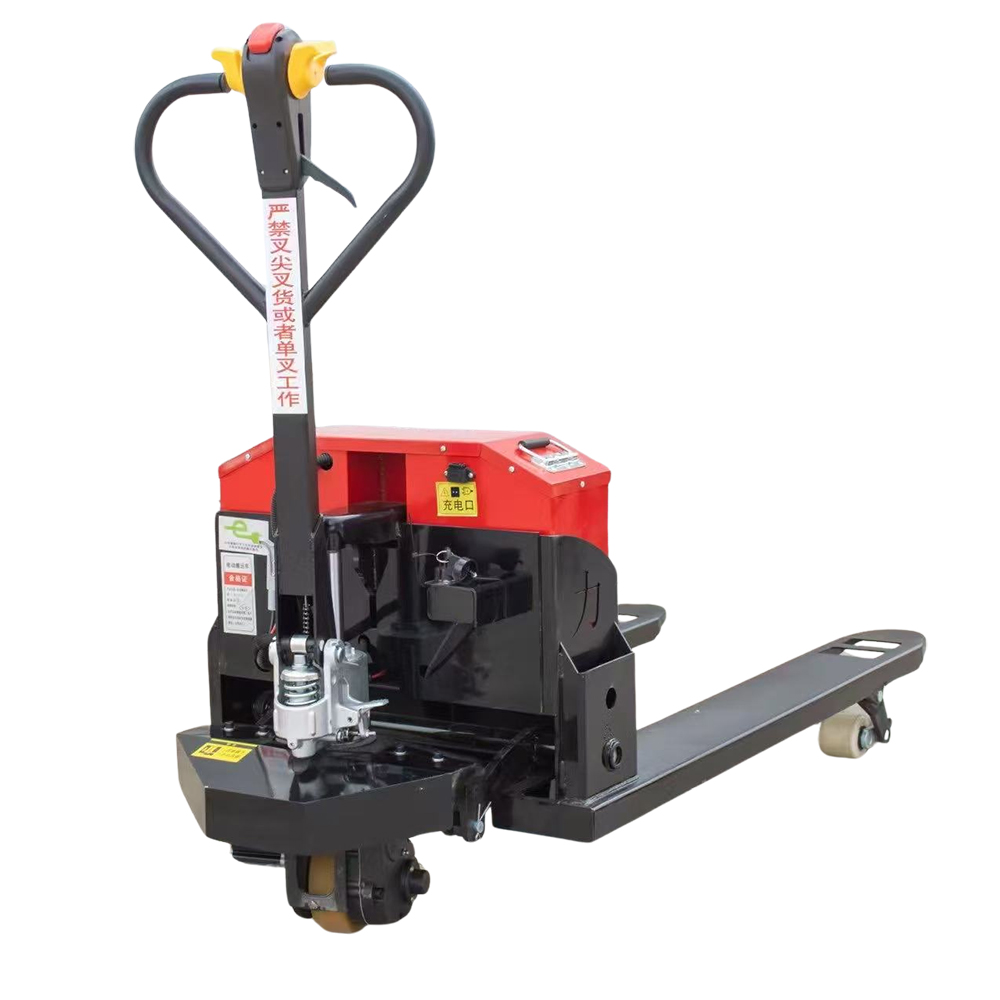

Electric Pallet Truck LB-20

Product Description

1. Small body, light weight and simple operation. 2. All control components are centralized at the end of the handle.

Stable Quality
Reasonable Price
Quick Delivery

Added Successfully

Product Description

1. Small body, light weight and simple operation.
2. All control components are centralized at the end of the handle.
3. High efficiency DC traction motor, large traction force.
4. Integral hydraulic pump station lifting system.
5. The latest MOS stepless speed regulating system.

6. Low noise, low pollution.

Model	LB-20
Loading Capacity	2000kg
Load center distance	600mm
Self Weight	140kg
Voltage	48V
Battery	Acid 48V/20Ah
Working time (full charge)	5h
Min fork height	85mm
Max fork height	195mm
Driving speed (loaded)	4.5km/h
Driving speed (unloaded)	5km/h
Lifting speed (loaded)	5mm/s
Lifting speed (unloaded)	8mm/s
Drive wheel size	160x55mm
Load wheel size	80x70mm
Drive motor rated power	0.8kw
Lift motor rated power	0.8kw
Overall fork width	550/685mm
Fork length	1150/1220mm
Charger	48V/3A
Minimum turning radius	1350mm
