In modern workshops, warehouses, construction sites, garages, and maintenance facilities, lifting equipment must be compact, efficient, affordable, and easy to operate. Many businesses and homeowners need a lifting solution that can handle daily material handling tasks without the size and cost of large industrial hoists.
This is why the PA Mini Electric Hoist has become one of the fastest-growing products in the global lifting equipment market.
Designed for 220V or 110V single-phase power supply, the PA electric hoist offers reliable lifting performance in a compact structure that can be installed almost anywhere. It is widely used for lifting tools, construction materials, machinery parts, warehouse goods, and maintenance equipment.
For distributors, wholesalers, and industrial buyers, the PA mini electric hoist represents an ideal combination of high demand, broad application range, and excellent cost performance.

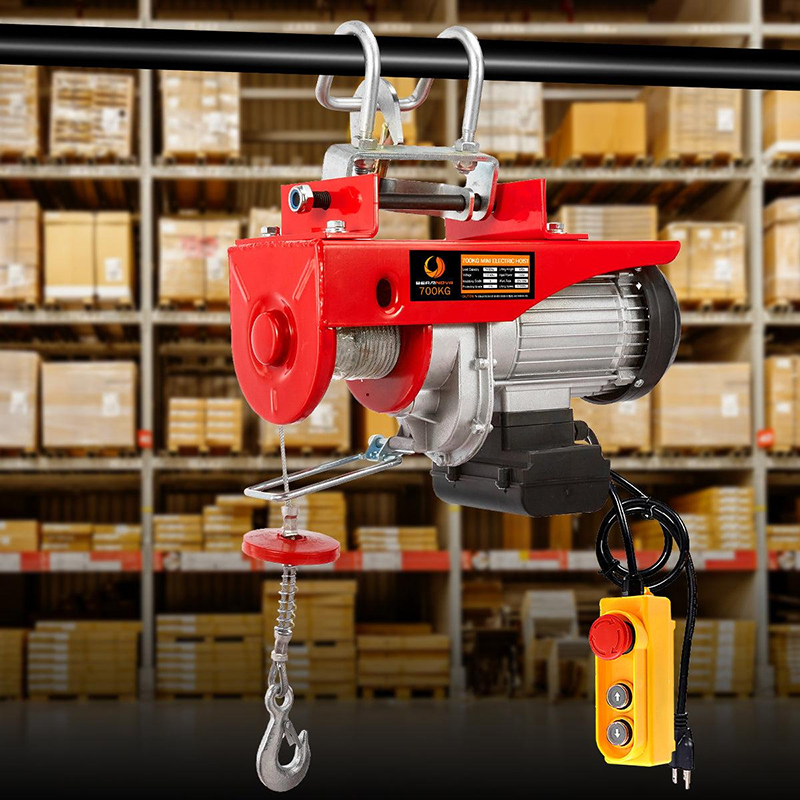

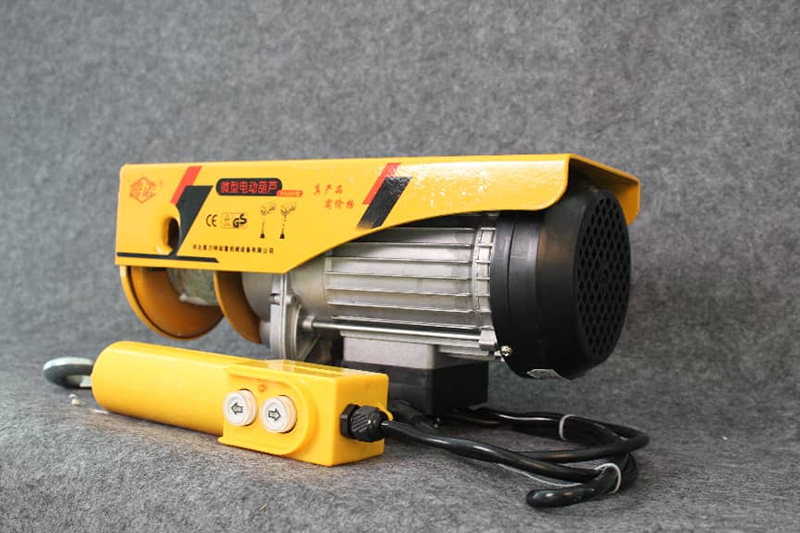

What Is a PA Mini Electric Hoist?

A PA Mini Electric Hoist, also called a mini wire rope electric hoist, is a compact lifting device powered by a single-phase electric motor.
The hoist uses a steel wire rope and drum mechanism to raise and lower loads safely and efficiently.
Common model names include:
PA200
PA300
PA400
PA500
PA600
PA800
PA1000
PA1200

These models are typically available in single-line and double-line lifting configurations.

How Does a PA Mini Electric Hoist Work?

The operating principle is simple and highly efficient.
1. Electric Motor Starts
The motor provides the driving force for lifting operations.
2. Gearbox Reduces Speed
The reduction gear increases torque and improves lifting power.
3. Drum Winds the Wire Rope
The steel wire rope winds around the drum as the load rises.
4. Hook Lifts the Load
The hook assembly transfers lifting force safely to the load.
5. Electromagnetic Brake Holds the Load
When power stops, the brake automatically locks the load in position.

This combination provides smooth, stable, and safe lifting performance for light and medium-duty applications.

Main Components of a PA Mini Electric Hoist

Electric Motor

The motor is the core power source of the hoist.
High-quality copper motors provide:
Stable operation
Low temperature rise
Long service life
Lower energy consumption

Steel Wire Rope

The wire rope carries the load during lifting.
Typical features include:
Galvanized steel construction
High tensile strength
Wear resistance
Long operating life

Drum Assembly

The drum stores and guides the wire rope during operation.
Precision winding helps reduce rope wear and improves safety.

Hook with Safety Latch

Forged steel hooks securely connect the load and prevent accidental release.

Control Pendant

The push-button controller allows operators to lift, lower, and stop the hoist safely from a convenient position.

Limit Switch

The limit device automatically stops the hoist when the hook reaches the maximum lifting position, protecting the equipment from over-travel.

Key Advantages of PA Mini Electric Hoists

Single-Phase Power

Operates on 110V or 220V household and workshop electricity without special industrial power supply.

Compact Design

Small size allows installation in garages, workshops, warehouses, and construction sites.

Easy Installation

Can be mounted on I-beams, support frames, or portable gantry systems with minimal setup.

Reliable Safety

Electromagnetic brake and limit switch help keep loads secure during operation.

Typical Applications

PA mini electric hoists are widely used in:
Industry
Common Use
Warehouses
Loading and unloading cartons, tools, and palletized goods
Construction
Lifting cement bags, steel bars, and building materials
Workshops
Machinery maintenance and component installation
Garages
Engine lifting and vehicle repair work
Farms
Handling feed bags, pumps, and equipment
Retail Storage
Moving inventory in backroom operations

Common Specifications

Rated Capacity
200 kg – 1200 kg
Lifting Height
6 m / 12 m / Customized
Voltage
110V / 220V
Frequency
50Hz / 60Hz
Duty Type
Intermittent operation
Single-Line Example
PA500 → 250 kg
Double-Line Example
PA500 → 500 kg

How to Choose the Right PA Mini Electric Hoist

1. Determine Load Weight

Choose a model with capacity higher than the maximum expected load.

2. Select Lifting Height

For standard workshop use, 6 m or 12 m is usually sufficient.

3. Check Power Supply

Confirm whether your site uses 110V or 220V electricity.

4. Consider Working Frequency

Frequent lifting operations may require a higher-capacity model with better heat dissipation.

5. Verify Installation Method

Ensure the hoist can be mounted securely on an I-beam, gantry crane, or support frame.

Safety Tips for Operating a PA Mini Electric Hoist

Before each use:
Inspect the wire rope for wear or damage.
Check the hook and safety latch.
Test the brake function.
Confirm the load weight is within rated capacity.
Ensure the support structure is secure.

Never:

Overload the hoist
Lift people
Pull loads sideways
Operate with damaged wire rope
Stand directly beneath a suspended load
Proper operation greatly improves both safety and equipment lifespan.

Maintenance Recommendations

Wire Rope Inspection

Replace ropes showing broken wires, kinks, or severe wear.

Lubrication

Lubricate the wire rope and moving parts regularly to reduce friction.

Motor Cooling

Avoid continuous operation beyond the recommended duty cycle.

Electrical Inspection

Check the power cable, plug, and control pendant for damage.

Proper Storage

Store the hoist in a dry, clean environment when not in use.

Why Global Buyers Choose PA Mini Electric Hoists

Distributors and industrial buyers worldwide continue to prefer PA hoists because they offer:
High market demand
Affordable pricing
Simple installation
Low maintenance costs
Reliable lifting performance
Wide application range
They are especially popular in Europe, Southeast Asia, the Middle East, South America, and Africa for workshop and warehouse lifting applications.

Future Trends in Mini Electric Hoists

Modern PA hoists are evolving with:
Brushless motor technology
Wireless remote control systems
Improved overload protection
Lighter aluminum housings
Smart monitoring functions
Higher energy efficiency
These improvements will continue to expand the role of compact electric hoists in industrial and commercial lifting operations.

Conclusion

The PA Mini Electric Hoist remains one of the most practical and economical lifting solutions available today.
Its compact size, single-phase power compatibility, reliable safety features, and wide range of applications make it ideal for warehouses, workshops, garages, construction sites, and maintenance operations.
Whether you are a distributor, contractor, or industrial buyer, investing in a high-quality PA electric hoist can improve productivity, reduce labor costs, and provide dependable lifting performance for years to come.
